1.5V Brushed DC Micro Motor Sizing Tool and 1.5V Micro Motor Guide

For OEM engineers and sourcing teams, screen a 1.5V brushed DC micro motor before supplier shortlisting. Estimate shaft power from voltage, speed, and torque, then review battery, driver, gearbox, and duty-cycle limits. This is a pre-RFQ screen; final selection needs part-specific data and bench validation.

Start with loaded battery voltage, startup current, driver UVLO, gear ratio, and duty cycle.

Published: 2026-04-06 | Last updated: 2026-10-02 | Source dates and model boundaries are listed below.

Tool layer: quick sizing input
Enter boundary-safe values first. Invalid input is blocked and recoverable.

Boundary: 1.2V to 3.7V.

Boundary: 2 to 3,000 rpm.

Boundary: 0.5 to 120 mNm.

Boundary: 5% to 100%.

Humid and high-temperature profiles lower the heuristic screening score and need extra validation.

Priority changes efficiency assumptions in this pre-RFQ model.

Get RFQ checklist

If the result is inconclusive, use the design-review CTA instead of forcing a procurement choice.

Result layer: interpreted outputNo result yet
Result includes interpretation, uncertainty, and the next executable action.

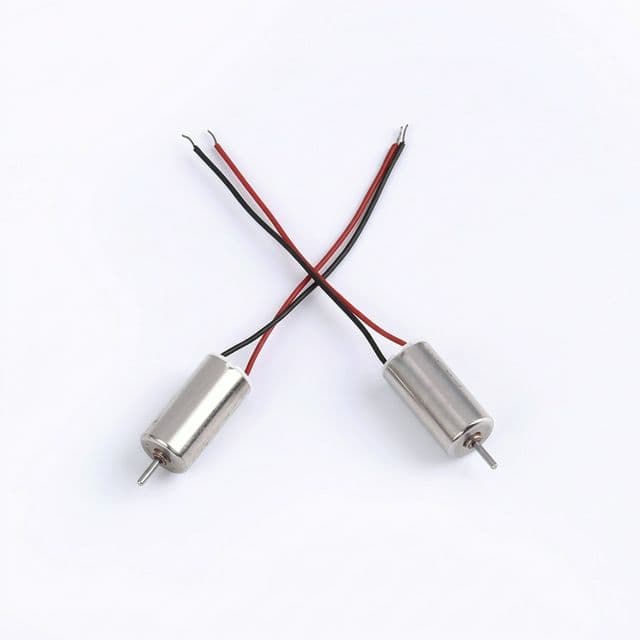

6mm class coreless brushed micro motor pair for low-voltage applications
6mm metal gearmotor side profile for low-speed reduction targets

Engineering summary: checks before RFQ

Supplier-specific examples show why the battery, driver, winding, and gearbox must be checked together.

Driver supply floors

1.65V / 1.8V / 2.7V

Cited driver families have different minimum supply windows; check the selected device and startup droop together.

Rechargeable AA boundary

1.2V nominal

A single NiMH cell can sit below common driver supply floors. Verify the loaded rail, not only nominal voltage.

Li-ion full-charge rail

Up to 4.2V

The cited cell is 3.6V nominal and charges to 4.2V; check absolute maximum ratings at the full-charge state.

Very low output speed

2rpm needs reduction

A 2rpm target usually involves a high gear ratio, where backlash and load limits matter.

Nominal vs exact ratio

1000:1 → 986.4:1

Use the exact ratio and vendor tolerances when screening low-speed output.

Winding variants

0.36A–1.6A stall at 6V

The cited LP and HP 1000:1 gearmotor variants have different stall-current ratings despite the same nominal ratio.

Encoder supply boundary

2.7V–18V

The cited Pololu encoder board needs a separate logic rail when paired with a 1.5V motor supply.

High-ratio tradeoff

Efficiency and backlash

Additional reduction stages can lower efficiency and increase backlash; compare the exact gearhead configuration.

Who this is suitable for
  • Need a fast pre-RFQ shortlist for 1.5V battery-powered low-speed actuators.
  • Need to decide whether double-shaft architecture is encoder-first or true dual-output under documented shaft-load boundaries.
  • Need startup current and droop estimates before selecting driver, battery chemistry, and wiring.
  • Need decision-ready risk boundaries before requesting samples.
Who this is not suitable for
  • Safety-critical products needing certified thermal/lifetime tests.
  • Programs requiring guaranteed multi-thousand-hour life at fixed 2rpm without PN-level bench data.
  • Applications requiring formal acoustic compliance reports from public datasets alone.
  • Mass-production release without startup waveform and gearbox-load validation.

Methods and evidence

Transparent formulas, dated sources, and explicit known/unknown boundaries.

Method flow
Input to estimate to boundary check to action path.
InputEstimateBoundary CheckAction
Method blockFormula / ruleDecision value
Mechanical power estimateP = 2 * pi * n / 60 * TConverts speed and torque into shaft mechanical load.
Motor equation boundaryU = I * R + kE * wFrom FAULHABER: lower supply voltage reduces available speed/torque headroom.
Output speed approximationn_out ~= n_no_load / gear_ratioUsed to check whether 2rpm requires ultra-high reduction and its related tradeoffs.
Current and droop estimateI_proxy ~= P_out / (V * eta_assumed) + 0.03A; eta_assumed = 38% / 42% / 44%; I_start_proxy ~= 2.8 * I_proxyIllustrative proxy only: cost/life/noise priorities use assumed 38%/42%/44% efficiency plus a fixed 30mA no-load allowance. It is not a motor current rating or startup upper bound; use PN-level winding/stall data and bench waveforms.
Thermal winding drift boundaryR_w(T) ~= R_25C * (1 + 0.004 * (T - 25))maxon motor-data guidance uses ~0.4%/K winding-resistance rise, affecting startup current and torque margin.
Boundary screen scoreBase 90 - boundary penaltiesAn uncalibrated rule-based score that penalizes low voltage margin, ultra-low speed requests, and high duty/torque combinations; it is not a probability of success.
Source ledger
Time markers and certainty labels are mandatory for trust. Baseline sources refreshed: 2026-04-18; double-shaft additions refreshed: 2026-10-02.
Known and unknown evidence blocks must be explicit
SourceDateCoverageKnown / Unknown
Pololu micro metal gearmotors datasheet (rev 6.2, Feb 2026)Accessed 2026-10-02Extended backshaft variants are encoder-oriented; encoder CPR is 12 x exact gear ratio and encoder Vcc is 2.7V to 18V. Datasheet also warns nominal ratios differ from exact ratios and includes tolerance notes (for example no-load speed +/-20%, no-load current +/-50%).Known with vendor scope
Pololu 6V LP micro metal gearmotor categoryRechecked 2026-10-026V 1000:1 LP row lists exact ratio 986.41:1, no-load 13rpm at 40mA, and stall current 0.36A.Known with vendor scope
Pololu 6V MP micro metal gearmotor categoryRechecked 2026-10-026V 1000:1 MP row lists exact ratio 986.41:1, no-load 22rpm at 70mA, and stall current 0.67A.Known with vendor scope
Pololu 6V HP micro metal gearmotor categoryRechecked 2026-10-026V 1000:1 HP row lists exact ratio 986.41:1, no-load 31rpm at 150mA, and stall current 1.6A.Known with vendor scope
FAULHABER 1741 CXR datasheet (edition 2026-03-23)Accessed 2026-10-02Lists encoder-combination option with rear end shaft and publishes dynamic shaft-load examples (radial and axial) by bearing type.Known with product-family scope
maxon DCX12 product data pageAccessed 2026-10-02Provides micro-scale shaft-load boundaries (dynamic axial and radial load, with radial condition measured at distance from flange).Known with product scope
maxon GPX12 gearhead catalog pageAccessed 2026-04-18Stage trend on GPX12 catalog page: max efficiency drops from 90% (1 stage) to 65% (4 stage), while average no-load backlash rises from 1.2deg to 2.1deg.Known with product-family scope
FAULHABER precision gearheads technical informationAccessed 2026-04-18States actual service life cannot be defined in general terms; higher continuous torque shortens life and intermittent-torque data should be limited to duty cycles <=5%.Known with source-scope boundary
TI DRV8833 product pageAccessed 2026-04-18Confirms VM operating range starts at 2.7V and typical application positioning for brushed DC rails.Known
TI DRV8833 datasheet (SLVSAR1E)Accessed 2026-04-18Recommended VM range 2.7-10.8V, UVLO falling threshold 2.6V typical, 1.5A RMS per-bridge output, OCP trip level 2A to 3.3A.Known
TI DRV8212 product pageAccessed 2026-04-18Confirms low-voltage H-bridge family support with VM floor near 1.65V.Known
TI DRV8212 datasheet (SLVSFY9B)Accessed 2026-04-18Operating supply range 1.65-11V (DRL) and split-supply DSG behavior (VM 0-11V, VCC 1.65-5.5V) with UVLO response conditions in Table 8-6.Known
TI DRV8837 datasheet (SLVSBP2F)Accessed 2026-04-18Separate VM/VCC rails (VM 0-11V, VCC 1.8-7V), VM dip behavior, and VCC UVLO condition/recovery rows (VCC < 1.7V, VCC > 1.8V).Known
Toshiba TB6612FNG datasheetAccessed 2026-04-18Operating range rows show VCC 2.7-5.5V and VM 2.5-13.5V, with IOUT 1A average and 3.2A peak.Known
Energizer E91 AA datasheetRechecked 2026-10-02Nominal 1.5V, nominal IR 150-300 mOhms, operating temperature -18C to 55C, and capacity curve reference to 0.8V endpoint at 21C.Known
Energizer NH15-2300 NiMH datasheetAccessed 2026-04-18Nominal 1.2V rechargeable AA, rated 2300mAh at 0.2C, internal resistance 30mOhm charged / 40mOhm half discharged, discharge range 0C to 50C.Known
Energizer L91 AA lithium datasheetAccessed 2026-04-18Max discharge 2.5A continuous / 4.0A pulse, IR 120-240 mOhms.Known
Murata US18650VTC6 datasheetAccessed 2026-04-18Nominal voltage 3.6V; charge condition uses CCCV to 4.2V; discharge condition example uses 2.0V cutoff at 600mA and 23C.Known
Murata high-drain coin battery lineup (CR2032R/CR2032X)Rechecked 2026-10-02CR2032R row: 200mAh, -30C to 70C, <=3mA continuous, 50mA pulse; CR2032X row: 220mAh, -40C to 85C, <=1mA continuous, 30mA pulse (with source test conditions).Known with source-specific scope
Murata micro battery business transfer notice (to Maxell)Rechecked 2026-10-02Murata states micro primary battery business transfer to Maxell (announced 2025-06-16) and notes Murata-issued catalogs/MSDS continue only up to 2026-03-01.Known with supplier-transition scope
Maxell microbattery certifications portalRechecked 2026-10-02Publishes current document map for Murata-transferred products, including UN38.3 test summaries and EU Battery Regulation declarations for CR2032R/X families.Known with document-availability scope
Pololu product 1596 (6V LP 1000:1)Rechecked 2026-10-02No-load speed 13rpm and stall current 0.36A at 6V; includes gearbox load-limit note for high ratios.Known
Pololu product 1596 FAQsRechecked 2026-10-02Operating around 25% of stall current is recommended for brushed motor longevity.Known with vendor scope
FAULHABER DC motor technical guide and motor-calculation whitepaperAccessed 2026-04-18Provides U=I*R+kE*w relationship, first-pass selection boundary (n >= no/2 and M <= MH/2), and typical service-life ranges.Known
maxon motor data and operating ranges guideAccessed 2026-04-18States startup current equals stall current at switch-on and gives winding-resistance temperature coefficient alpha(Cu) around 0.4%/K.Known with source scope
EUR-Lex Directive 2011/65/EU (RoHS)Accessed 2026-04-18Annex II concentration limits for restricted substances in homogeneous materials.Known
EUR-Lex Delegated Directive (EU) 2015/863Accessed 2026-04-18Adds DEHP, BBP, DBP, and DIBP at 0.1% limits in RoHS Annex II; application date marker 22 July 2019 for most EEE categories.Known
EUR-Lex Regulation (EU) 2023/1542 (Batteries)Accessed 2026-04-18Article 96 defines staged application dates (including 18 Feb 2024 general application and later chapter-specific triggers).Known
EUR-Lex Regulation (EU) 2025/1561Rechecked 2026-10-02Amends Regulation (EU) 2023/1542 Article 48 milestones, including due-diligence date shift from 18 Aug 2025 to 18 Aug 2027.Known
US DOT PHMSA lithium battery test-summary requirementRechecked 2026-10-02PHMSA states lithium cells/batteries offered for transport must pass UN 38.3 design tests; manufacturers and distributors make test summaries available upon request. The PHMSA brochure was revised May 10, 2024.Known with transport-scope boundary
US CPSC button/coin battery business guidance (Reese law)Rechecked 2026-10-02Lists 16 CFR part 1263 product requirements (manufactured/imported after 2024-03-19), 16 CFR 1263.4 packaging requirements (after 2024-09-21), and 16 CFR 1700.15 packaging requirement path under 15 U.S.C. 2056e.Known with US consumer-product scope
On-page sizing model (this tool)Reviewed 2026-10-02Pre-RFQ current/power/fit scoring; not a substitute for PN-level endurance validation.Known
Brand-specific endurance and brush-wear test reportsPendingPN-level life curves for high-duty and high-temperature profiles.Pending confirmation / no reliable public dataset

Sourced engineering checks

These source-scoped facts affect battery, driver, gearbox, and procurement decisions. Conditions and source dates are shown per row.

Engineering facts and decision effects
Use each fact only within its stated source scope. Unverified motor-specific performance remains in the pending-confirmation list.
TopicFactApplicable conditionDecision effectSourceDateCertainty
Driver floor + UVLO boundaryDRV8833 VM range is 2.7-10.8V and UVLO falling threshold is 2.6V typical.Applies when using standard integrated brushed H-bridges without boost conversion.Single-cell 1.5V design is a direct counterexample for this driver class.TI DRV8833 datasheetAccessed 2026-04-18Known
Driver current envelopeDRV8833 supports 1.5A RMS per bridge and OCP trip level around 2A-3.3A.Relevant when startup surges are close to driver limits.Current-budget checks must be explicit; otherwise OCP chopping or thermal throttling can mask fit risk.TI DRV8833 datasheetAccessed 2026-04-18Known
Lower-voltage driver optionDRV8212 operating range is 1.65-11V with peak output current up to 4A.Still needs startup/sag headroom because real 1.5V cells can fall below the minimum VM threshold.Do not mark 1.5V as "safe by default"; validate with waveform capture.TI DRV8212 datasheetAccessed 2026-04-18Known with boundary
Split-supply UVLO boundary (DRV8212 DSG)DRV8212 Table 8-6 states DSG mode can keep normal operation with VM between 0V and VMAX when VCC remains above 1.65V.Applies to the DSG split-supply package; DRL single-supply mode still UVLO-trips below 1.65V.VM droop alone is not always fatal on split rails, but VCC brownout is fatal; scope both rails before approving fit.TI DRV8212 datasheetAccessed 2026-04-18Known with package scope
Split VM/VCC behavior (DRV8837)DRV8837 datasheet lists VM 0-11V and VCC 1.8-7V; fault table shows VCC UVLO at <1.7V with recovery >1.8V.Applies when VM and VCC are independently managed or monitored in low-voltage architectures.Treat control-rail headroom as a separate design gate; tying both rails directly to a sagging 1.5V cell creates hidden UVLO risk.TI DRV8837 datasheetAccessed 2026-04-18Known with boundary
Commodity H-bridge module counterexample (TB6612FNG)TB6612FNG operating ranges are VCC 2.7-5.5V and VM 2.5-13.5V, with 1A average output current and 3.2A peak.Applies to common TB6612 module-class designs used in hobby/prototype ecosystems.Direct 1.5V battery rails are out of operating range, so this driver class is not a drop-in solution for `1.5v dc motor` architectures.Toshiba TB6612FNG datasheetAccessed 2026-04-18Known with source-specific scope
Rechargeable NiMH boundaryEnergizer NH15-2300 lists nominal 1.2V and 2300mAh at 0.2C, with internal resistance rows of 30mOhm (charged) and 40mOhm (half discharged).Specific to the cited NH15-2300 AA NiMH profile and its datasheet conditions.Do not substitute 1.2V NiMH for 1.5V primary assumptions without re-validating driver UVLO and startup margin.Energizer NH15-2300 datasheetAccessed 2026-04-18Known with source scope
Battery rail droop riskE91 nominal IR is 150-300 mOhms; startup surge can consume rail margin quickly.Single-cell alkaline reference only; real packs vary by chemistry, age, and temperature.Do not treat 1.5V as stable under surge without pack-level measurements.Energizer E91 datasheetAccessed 2026-04-18Known with modeling assumptions
Primary-cell endpoint boundaryE91 capacity curve is referenced to continuous discharge down to 0.8V at 21C.This is a datasheet service-test endpoint, not a recommended control-rail minimum for motor drivers.Do not map battery endpoint voltage directly to driver viability; UVLO floors remain the hard gate.Energizer E91 datasheetAccessed 2026-04-18Known with boundary
3V coin-cell current ceilingMurata CR2032R/X lineup lists <=3mA to <=1mA recommended continuous current, with 30mA to 50mA pulse rows under specified test conditions.Scope-limited to the listed Murata high-drain/extended-temperature coin-cell models and test setup.Treat 3V coin-cell + brushed startup as a counterexample unless surge current is buffered or architecture changes.Murata coin battery lineup newsAccessed 2026-04-18Known with source-specific scope
Coin-cell capacity and temperature scopeMurata lineup table also tags CR2032R as 200mAh at -30C to 70C and CR2032X as 220mAh at -40C to 85C.Values are row-specific for the listed high-drain and extended-temperature models under the page footnotes.Current limit checks must be paired with capacity and temperature context before concluding lifecycle fit.Murata coin battery lineup newsAccessed 2026-04-18Known with source-specific scope
3.7V label boundaryUS18650VTC6 datasheet shows 3.6V nominal and CCCV charge to 4.2V.Applies to this referenced cylindrical Li-ion class; other cells can vary.For 3.7V requests, validate motor/driver voltage margin at full-charge state rather than nominal label only.Murata US18650VTC6 datasheetAccessed 2026-04-18Known with source-specific scope
2rpm hardware feasibilityPololu 1000:1 LP example is 13rpm no-load at 6V and 0.36A stall current.Single example, not universal; actual output speed decreases under load and battery sag.2rpm usually implies very high gear ratio + torque verification, not direct-drive coreless.Pololu product 1596Accessed 2026-04-18Known with vendor scope
Same-ratio winding-class spread (LP vs MP vs HP)Pololu 6V 1000:1 rows (exact ratio 986.41:1) list LP 13rpm/0.36A stall, MP 22rpm/0.67A stall, and HP 31rpm/1.6A stall.Applies when teams treat nominal ratio as primary selector but have not locked winding class.Driver and battery sizing must be pinned to winding class, not ratio label alone; same ratio can produce >4x stall-current spread.Pololu 6V LP/MP/HP comparison table (Rev. 6.2 datasheet)Accessed 2026-04-18Known with vendor scope
Gearbox load limit boundaryPololu notes 380:1 and 1000:1 gearboxes have instantaneous load limits around 25kg*mm.Specific to the referenced gearbox family; other vendors can differ.Low-rpm/high-torque requests must include gearbox load checks, not motor-only checks.Pololu product 1596Accessed 2026-04-18Known with vendor scope
Nominal ratio vs exact ratio boundaryPololu Rev 6.2 lists exact gear ratios that differ from nominal classes (for example nominal 1000:1 maps to exact 986.4:1).Applies to the cited micro metal gearmotor family where supplier tables include both nominal and exact ratio rows.2rpm feasibility should use exact ratio rows and measured no-load constants, not nominal ratio shorthand alone.Pololu micro metal gearmotors datasheetAccessed 2026-04-18Known with vendor scope
No-load spread boundary for low-speed estimatesPololu Rev 6.2 tolerance notes list no-load speed tolerance of +/-20% and no-load current tolerance of +/-50%.Applies to supplier-table interpretation for pre-RFQ screening and speed/current guardband planning.Treat single-point rpm/current predictions as directional and add guardbands before procurement decisions.Pololu micro metal gearmotors datasheetAccessed 2026-04-18Known with tolerance-scope boundary
Stage-count backlash and efficiency tradeoffmaxon GPX12 catalog row shows max efficiency 90% (1 stage) to 65% (4 stage) while average no-load backlash increases 1.2deg to 2.1deg.Product-family scope for the cited GPX12 catalog page; values vary by stage count and gearhead variant.High-ratio choices should explicitly budget positioning slack and mechanical loss instead of assuming linear low-speed scaling.maxon GPX12 gearhead catalog pageAccessed 2026-04-18Known with product-family scope
Current utilization guardrailPololu FAQ recommends keeping typical brushed operation near 25% of stall current.Vendor recommendation; use as a screening guardrail before PN-level test data.When estimates exceed this band, downgrade confidence and require bench test before RFQ.Pololu product 1596 FAQAccessed 2026-04-18Known with boundary
Startup current upper-bound boundarymaxon operating-range guide states startup current equals stall current when the motor is switched on.Applies to brushed DC startup at zero speed; exact value still depends on winding and supply conditions.Treat fixed multipliers as screening heuristics only and keep stall-current verification as a mandatory upper-bound check.maxon motor data and operating ranges guideAccessed 2026-04-18Known with source-scope boundary
Thermal winding resistance driftmaxon lists winding-resistance temperature coefficient alpha(Cu) around 0.4% per Kelvin.Applies to copper winding behavior and startup-current/torque estimates under elevated winding temperature.High-duty and hot-ambient cases need thermal derating because resistance growth changes real startup and torque margins.maxon motor data and operating ranges guideAccessed 2026-04-18Known with source-scope boundary
Double-shaft speed reference boundaryPololu encoder rows measure motor-shaft speed at the gearbox input and specify output counts as 12 x gear ratio.Applies to the cited Pololu micro metal gearmotor family with integrated or add-on encoder boards.Do not treat the rear shaft as equivalent to low-speed geared output when deciding 2rpm feasibility.Pololu micro metal gearmotors datasheetAccessed 2026-10-02Known with vendor scope
Double-shaft encoder supply boundaryPololu encoder board Vcc range is 2.7V to 18V.Applies when extended-backshaft motors are paired with the cited hall encoder modules.A 1.5V rail is usually insufficient for direct encoder power; add a separate regulated logic rail before BOM freeze.Pololu micro metal gearmotors datasheetAccessed 2026-10-02Known with source-specific scope
Rear-shaft intended roleFAULHABER 1741 CXR option row defines a rear end shaft for encoder combination (IE2/IEH2/IEH3).Applies to the referenced 1741 CXR product family and listed encoder combinations.Treat rear shaft as sensing-first in baseline architecture; any secondary power take-off needs explicit mechanical validation.FAULHABER 1741 CXR datasheetAccessed 2026-10-02Known with product-family scope
Micro shaft-load ceiling (reference example)maxon DCX12 lists dynamic axial load 0.5N and radial load 1.5N at 5mm from flange.Product-specific reference row for tiny brushed motor architectures, not a universal limit.Double-shaft coupler inertia and alignment must be load-budgeted instead of assuming large side-load tolerance.maxon DCX12 product pageAccessed 2026-10-02Known with product scope
First-pass selection and life boundaryFAULHABER uses n >= no/2 and M <= MH/2 as first-pass checks; typical service life is often 1,000 to 5,000 hours depending on load conditions.Heuristic and typical range; not a guarantee for any specific part number.Treat 2rpm-life claims as conditional unless vendor provides matched endurance curves.FAULHABER DC motor technical guideAccessed 2026-04-18Known with boundary
Gearhead life statement boundaryFAULHABER precision gearheads guidance states actual service life cannot be given in general terms and intermittent torque values should be treated within <=5% duty-cycle context.Applies as technical guidance for precision gearheads; not a per-part guaranteed life curve.Do not publish hard life-hour commitments for `1.5v gear motor` paths without PN-level endurance tests under matched duty/load profiles.FAULHABER precision gearheads technical informationAccessed 2026-04-18Known with source-scope boundary
Compliance boundaryRoHS Annex II lists homogeneous-material concentration limits (e.g., Pb 0.1%, Cd 0.01%).Applies when products fall into covered EEE categories and markets.Supplier material declarations must be part of RFQ gating, not post-order cleanup.EUR-Lex RoHS Directive 2011/65/EUAccessed 2026-04-18Known
RoHS phthalate boundary updateDelegated Directive (EU) 2015/863 adds DEHP, BBP, DBP, and DIBP to Annex II at 0.1% concentration limits.Applies for RoHS-covered EEE categories with 22 July 2019 as the principal application marker.RFQ compliance packets should explicitly cover all 10 Annex II substances, not only the original six.EUR-Lex Delegated Directive (EU) 2015/863Accessed 2026-04-18Known with regulatory scope
Lithium transport documentation gatePHMSA states lithium cells/batteries offered for transport must pass UN 38.3 design tests; manufacturers and distributors make test summaries available upon request.Relevant when projects use Li-ion batteries and need compliant domestic/international transport workflows.Request the battery-specific UN 38.3 test summary before arranging shipment; do not treat a general battery-family sheet as proof for another model.US DOT PHMSA test-summary guidanceAccessed 2026-04-18Known with transport-scope boundary
EU battery regulation timeline boundaryRegulation (EU) 2023/1542 sets staged dates: general application from 18 Feb 2024, with additional chapter/article triggers in Aug 2024, Aug 2025, and Feb 2027.Applies to EU-market battery supply chains where legal duties are phased by article/chapter.Program plans targeting EU deliveries should map battery compliance milestones to launch timing during sourcing.EUR-Lex Regulation (EU) 2023/1542Accessed 2026-04-18Known with phased-applicability boundary
EU due-diligence date amendment (2025/1561)Regulation (EU) 2025/1561 replaces Article 48(1) date from 18 Aug 2025 to 18 Aug 2027 and Article 48(5) date from 18 Feb 2025 to 26 Jul 2026.Applies to teams that already mapped due-diligence obligations using pre-amendment 2023/1542 milestone assumptions.Refresh compliance schedules and supplier onboarding plans to avoid stale legal-date gates in RFQ workflows.EUR-Lex Regulation (EU) 2025/1561Accessed 2026-04-18Known with legislative-amendment scope
US button/coin battery safety timeline (Reese law)CPSC guidance marks 16 CFR part 1263 product requirements for products manufactured/imported after 2024-03-19 and 16 CFR 1263.4 packaging requirements after 2024-09-21.Applies to US consumer products containing button/coin cells, including accessory packs and retail-ready sample kits.Coin-cell architecture approvals should include US product+packaging safety checkpoints, not only electrical and transport checks.US CPSC button/coin battery business guidanceAccessed 2026-04-18Known with US consumer-product scope
Micro primary battery document-issuer transitionMurata announced transfer of micro primary battery business to Maxell (2025-06-16) and indicated Murata-issued catalogs/MSDS continuity only up to 2026-03-01.Applies to teams reusing Murata-era coin-cell documents for RFQ/compliance checks after the transition window.Verify current document issuer and revision date before treating historical Murata files as active compliance evidence.Murata transfer notice + Maxell microbattery certificationsAccessed 2026-04-18Known with supplier-transition scope

Pending confirmation / no reliable public data
Evidence is insufficient for strong conclusions in these areas.
Open questionWhy evidence is insufficientDecision impact
Vendor-normalized endurance curves for 1.5V, 2rpm, and 20% to 80% duty profiles.No reliable cross-vendor public dataset with matched load profile and brush composition.Cannot issue strong life claims; procurement should require PN-level endurance report.
Cold-start success rate at 1.5V with aged alkaline vs lithium cells.Public datasets are fragmented and not normalized by pack ESR and startup waveform.Startup reliability remains conditional until bench samples are tested.
Cross-vendor backlash and positioning-error data for ultra-high-ratio micro gearboxes.Most public specs omit backlash under matched load and direction-reversal frequency.2rpm precision claims remain directional unless supplier test fixtures are aligned.
Cross-vendor rear-shaft continuous-load and concentricity drift data for double-shaft micro motors.Public datasets rarely publish matched life tests for rear-shaft coupler load, alignment tolerance, and duty profile.Strong durability claims for dual mechanical output remain conditional until supplier PN-level bench evidence is provided.

1.5V / 3V / 3.7V battery and driver boundary matrix

Core architecture decisions are tied to dated source rows, not nominal-voltage shorthand.

Voltage-label reality check
Updated on 2026-04-18. Use this matrix before finalizing battery and driver architecture.
1.5V AA3V coin cell3.7V class Li-iondroop-sensitive surgecurrent-limited startup4.2V full-charge checkscope VM and dutyavoid direct motor startverify abs max margin
LayerDatasheet markersApplicable scopeFailure mode / counterexampleMinimum actionSource & date
1.5V single-cell alkaline reference (E91)Nominal 1.5V, nominal IR 150-300 mOhms, operating temp -18C to 55C, service-test endpoint to 0.8V.Single-cell alkaline design baseline at fresh condition.Voltage sag scales with startup surge and rises with aging/cold conditions; 0.8V endpoint is below most practical driver floors.Capture startup droop waveform on final harness and temperature corners before RFQ freeze; gate driver decisions on UVLO thresholds, not endpoint voltage.
Energizer E91 datasheet

Rechecked 2026-10-02

1.2V rechargeable AA path (NH15-2300 NiMH)Nominal 1.2V, 2300mAh at 0.2C, internal resistance 30mOhm charged / 40mOhm half discharged.Rechargeable AA projects prioritizing cycle cost and replaceability.Treating 1.2V as equivalent to 1.5V can silently break UVLO margin on low-voltage motor drivers.Model rechargeable rail separately and qualify whether boost or split-rail control is required.
3.0V coin-cell path (CR2032R/X lineup)CR2032R: 200mAh, -30 to 70C, <=3mA continuous, 50mA pulse; CR2032X: 220mAh, -40 to 85C, <=1mA continuous, 30mA pulse.Coin-cell-powered architectures targeting compact standby-centric loads.Typical brushed motor startup envelopes often exceed these current rows by orders of magnitude.Do not assume direct motor startup from coin-cell rails; redesign battery path or add staged power architecture.
3.7V-class Li-ion cylindrical pathUS18650VTC6 lists 3.6V nominal, CCCV charge to 4.2V, discharge example to 2.0V cutoff at 600mA.Single-cell Li-ion projects labeled as 3.7V architecture.Nominal label can hide full-charge overvoltage and low-voltage torque collapse windows.Check motor/driver absolute maximum at 4.2V and validate low-voltage behavior near discharge-end.
Murata US18650VTC6 datasheet

Accessed 2026-04-18

Driver architecture split (DRV8833 vs DRV8837 vs DRV8212)DRV8833: VM 2.7-10.8V, UVLO VM<2.5V; DRV8837: VM 0-11V + VCC 1.8-7V, UVLO VCC<1.7V; DRV8212: DRL VM 1.65-11V or DSG VM 0-11V + VCC 1.65-5.5V.Low-voltage brushed H-bridge decisions for 1.5V/3V/3.7V query variants.Supply-floor and split-rail behavior mismatches can invalidate otherwise "good" torque/speed calculations.Map modeled startup current and both rail transients (VM and VCC where applicable) to selected driver fault thresholds before sourcing.
Commodity dual H-bridge module class (TB6612FNG)TB6612FNG lists VCC 2.7-5.5V and VM 2.5-13.5V operation, with 1A average output and 3.2A peak.Relevant when teams consider low-cost module ecosystems as substitutes for purpose-selected low-voltage drivers.Direct 1.5V rails are below TB6612 operating floors even before temperature and aging effects.Treat TB6612-class modules as 1.5V counterexamples unless the motor rail is boosted above VM minimum.
Toshiba TB6612FNG datasheet

Accessed 2026-04-18

Driver floor and UVLO behavior matrix

Decision-critical driver behavior is mapped by supply model, UVLO trigger, and direct counterexample.

Driver classes for low-voltage brushed paths
Updated on 2026-04-18. This table separates single-rail and split-rail assumptions so UVLO checks remain reproducible.
DRV8833DRV8837DRV8212UVLO on VM railUVLO on VCC railpackage-dependent UVLO2.7V floor classsplit-rail capable1.65V floor class
Driver classSupply window / current envelopeUVLO / fault behaviorCounterexampleMinimum actionSource & date
DRV8833 (single VM rail)Vs(min)=2.7V, Vs ABS(max)=11.8V, peak output current=2AVM < 2.5V => disabled, VM > 2.7V => recovery (datasheet protection table)Single-cell 1.5V direct-drive path is below guaranteed VM floor even before temperature and aging sag.Use a boosted rail or move to a lower-floor architecture before supplier shortlist.
DRV8837 (split VM/VCC capable)VM 0-11V, VCC 1.8-7V, peak output current=1.9A (product table)VCC < 1.7V => disabled, VCC > 1.8V => recovery; VM can dip to 0V while logic stays aliveIf VM and VCC are both tied to a sagging 1.5V cell, VCC UVLO still trips; split pins do not remove rail-margin requirements.Track VM and VCC independently in startup waveforms and enforce VCC headroom in corner tests.
DRV8212 (DRL single rail / DSG split rail)DRL VM 1.65-11V, DSG VM 0-11V with VCC 1.65-5.5V, peak output current=4ADSG can remain normal for VM down to 0V when VCC > 1.65V; DRL UVLO below 1.65VTreating DRL and DSG as identical can produce wrong pass/fail decisions for battery-sag scenarios.Lock package-specific requirements in RFQ and test the rail that actually controls UVLO.
TB6612FNG (dual-H bridge module class)VCC 2.7-5.5V, VM 2.5-13.5V, IOUT 1A average / 3.2A peakNo guaranteed operation is defined below supply-floor ranges in the operating-condition rows.A direct `1.5v dc motor` rail cannot satisfy both VCC and VM minima on this common driver class.Use a boosted motor rail or choose a lower-floor driver architecture before evaluating module BOMs.
Toshiba TB6612FNG datasheet

Accessed 2026-04-18

1000:1 winding-class spread matrix

Same nominal ratio is not enough for electrical go/no-go decisions; winding-class spread is a direct counterexample.

LP/MP/HP same-ratio comparison
Updated on 2026-04-18. Rows below share the same exact ratio (986.41:1) but show materially different startup envelopes.
LP 0.36AMP 0.67AHP 1.6ASame exact ratio (986.41:1), different stall-current envelopePololu 6V 1000:1 LP/MP/HP rows: startup sizing cannot use ratio label alone
VariantExact ratioNo-load speedNo-load currentStall currentBoundary implicationSource & date
6V LP 1000:1 (pololu)986.41:113rpm40mA0.36ALowest-current variant in this ratio class, but still far above coin-cell continuous-current rows for direct brushed startup.
Pololu LP category

Rechecked 2026-10-02

6V MP 1000:1 (pololu)986.41:122rpm70mA0.67AMiddle winding shifts current and speed significantly while keeping the same nominal ratio label.
Pololu MP category

Rechecked 2026-10-02

6V HP 1000:1 (pololu)986.41:131rpm150mA1.6ASame ratio label but 4.4x stall-current spread vs LP means driver/battery pass-fail can flip if winding class is unspecified.
Pololu HP category

Rechecked 2026-10-02

Battery chemistry boundary matrix

Chemistry choice and driver choice are linked but not interchangeable; each row includes mismatch risk and a minimum executable action.

Chemistry envelope vs motor-start reality
Updated on 2026-04-18. Rows are scoped to cited datasheets or lineup tables.
E91L91NH15-2300CR2032R/X1.5V nominalhigh pulse primary1.2V rechargeablemA-class continuousIR-limited surge2.5A continuous rowfloor-mismatch riskno direct motor start
Chemistry pathSource envelopeBest-fit useMismatch / counterexampleMinimum actionSource & date
E91 alkaline AANominal 1.5V; IR 150-300mOhm (fresh); operating -18C to 55C; service curve to 0.8V at 21CDisposable AA baseline for quick low-voltage prototypingStartup surge and temperature drift can collapse VM below driver UVLO long before endpoint assumptions.Scope startup droop on real cells across age and temperature before committing BOM.
Energizer E91 datasheet

Rechecked 2026-10-02

L91 lithium AANominal 1.5V; max discharge 2.5A continuous / 4.0A pulse; IR 120-240mOhm; operating -40C to 60CWider-temperature, higher-pulse primary-cell programsHigher pulse capability improves margin, but nominal voltage still does not satisfy 2.7V-class drivers without conversion.Separate battery chemistry choice from driver-floor choice; validate both independently.
Energizer L91 datasheet

Accessed 2026-04-18

NH15-2300 NiMH AANominal 1.2V; 2300mAh at 0.2C; IR 30mOhm charged / 40mOhm half discharged; discharge 0C to 50CRechargeable designs focused on cycle cost1.2V nominal is below 1.65V/1.8V/2.7V floors unless you redesign supply architecture.Model NiMH as a separate architecture path and verify UVLO guardband before sample release.
CR2032R / CR2032X coin cells3.0V nominal; CR2032R 200mAh, <=3mA continuous, 50mA pulse (-30 to 70C); CR2032X 220mAh, <=1mA continuous, 30mA pulse (-40 to 85C)Standby-centric sensors with short controlled burstsTypical brushed startup currents exceed recommended continuous rows by large margins.Do not approve direct motor startup from coin cells without buffering and measured transient proof.
Murata coin battery lineup

Accessed 2026-04-18

Compliance and logistics boundaries

Electrical feasibility is necessary but not sufficient; transport and regulation gates are mapped to executable sourcing actions.

Regulatory and shipment readiness matrix
Updated on 2026-04-18. Rows are source-scoped and time marked to avoid stale compliance assumptions.
2023-02-122024-02-182024-03-192024-09-212027-08-18PPPA path liveEU regulation starts16 CFR 1263 product16 CFR 1263.4 packEU due diligence
GateFactApplicable scopeRisk if ignoredMinimum actionSource & date
Lithium battery transport test gateLithium cells/batteries offered for transport must pass UN 38.3 design tests, and manufacturers/distributors must make the test summary available upon request.Applies when project samples ship with Li-ion cells/battery packs through regulated transport channels.Electrical fit can pass while shipment readiness fails if suppliers cannot provide test-summary records.Request UN 38.3 test summary in RFQ package and verify before sample logistics booking.
EU battery-regulation rolloutRegulation (EU) 2023/1542 applies from 18 Feb 2024; Regulation (EU) 2025/1561 later amends Article 48 dates, including 18 Aug 2025 -> 18 Aug 2027 for due-diligence application.Applies to programs shipping battery-containing products into EU markets.Using pre-amendment date assumptions can mis-sequence sourcing, legal review, and supplier onboarding even when motor performance checks are complete.Map Article 96 milestones plus amended Article 48 dates into launch plan ownership and RFQ gates.
US button/coin-cell consumer-product safety gateCPSC guidance marks 16 CFR part 1263 requirements for products manufactured/imported after 2024-03-19, and 16 CFR 1263.4 packaging requirements after 2024-09-21 (with PPPA path in 16 CFR 1700.15).Applies to US consumer products and retail packaging that include button-cell or coin batteries.A design can pass electrical and transport checks yet still fail US market-entry readiness if product/packaging safety requirements are ignored.Add Reese law checkpoints to RFQ and launch checklists: product standard scope, warning statements, and packaging pathway evidence.
Coin-cell document issuer transitionMurata announced transfer of its micro primary battery business to Maxell (2025-06-16), and points users to transition windows for Murata-issued catalogs/MSDS while Maxell publishes ongoing certification files.Applies when CR-series coin-cell evidence in RFQ packs mixes Murata-era and Maxell-era documents.Outdated issuer records can fail customer or transport documentation checks even if electrical sizing is valid.Verify document issuer + issue date, then pull current UN38.3/EU-declaration files from the active Maxell certification portal for the exact cell family.
RoHS substance-scope completenessDelegated Directive (EU) 2015/863 extends RoHS Annex II with four phthalates at 0.1% limits.Applies where RoHS declarations are required for electronics in covered categories.Requesting only legacy six-substance declarations can leave phthalate compliance unverified.Ask suppliers for Annex II complete declarations (10 substances) and keep dated evidence with RFQ records.

Double-shaft decision boundary matrix

For double-shaft designs, verify shaft function, encoder rail, and mechanical-load boundaries against the selected part data.

Rear-shaft reality check
Updated on 2026-10-02. Rows are kept source-scoped to avoid overgeneralizing one vendor family to all double-shaft products.
ConfigurationRear shaft roleEncoder railLoad budgetdual-shaft layoutoften sensing-first2.7V+ module classesradial + axial checkspart data decides functionavoid speed confusionseparate logic supplyPN-level validation
Decision dimensionFactApplicable conditionCounterexample / failure modeMinimum actionSource & date
Rear-shaft functional rolePololu extended-backshaft variants are intended for encoder integration and measure motor-side speed.Applies to the cited micro metal gearmotor family with integrated or add-on hall encoders.Treating rear shaft as equivalent to low-speed geared output can invalidate 2rpm architecture assumptions.Use rear shaft as sensing-first baseline; verify any power take-off as a separate mechanical design path.
Encoder logic rail boundaryPololu encoder board Vcc range is 2.7V to 18V.Relevant when double-shaft variants are paired with encoder boards in low-voltage projects.Directly powering encoder logic from a 1.5V rail can underpower sensing electronics even when motor commutation still moves.Budget a separate regulated logic rail (or boost path) before committing the electrical architecture.
Rear-shaft + encoder combination optionFAULHABER 1741 CXR lists a rear end shaft option for encoder combination (IE2/IEH2/IEH3).Applies to the referenced 1741 CXR product-family option row.Assuming every dual-shaft motor is optimized for dual mechanical output ignores encoder-oriented package variants.Treat rear-shaft usage mode as a procurement requirement in RFQ (encoder-only vs mechanical output).
FAULHABER 1741 CXR datasheet

Accessed 2026-10-02

Tiny-shaft load envelope (reference)maxon DCX12 reference row lists dynamic radial 1.5N (at 5mm from flange) and dynamic axial 0.5N.Product-specific values are not universal but show the micro-scale load domain for coupler design.Adding heavy dual couplers without load budgeting can exceed bearing limits before electrical margins fail.Quantify radial/axial loads at both shaft ends and verify against candidate PN datasheets.
maxon DCX12 product page

Accessed 2026-10-02

Alternative comparison

Use reproducible dimensions (voltage, torque, response, cost, fit) instead of generic claims.

Option comparison table
If a value is unavailable in your project context, keep it as N/A and request supplier evidence.
PerformanceCostSimplicityReliability
OptionVoltage bandTorque bandDynamic responseCost classBest-fit scenarioBoundary / counterexample
Brushed micro motor (direct drive)1.5V-3.7V0.5-8 mNmVery fastLowGood for compact high-speed spins where low torque is acceptableCounterexample: cannot stably target 2rpm output without additional reduction stage.
Brushed micro motor + high-ratio gearhead (380:1 to 1000:1 class)1.5V-6V8-120 mNmMediumMediumPrimary path for 2rpm-class requests in compact packagingGearbox load limits, exact-ratio variance, and backlash/efficiency tradeoffs become dominant risks at low speed/high torque.
Double-shaft gearmotor + encoder-ready architecture1.5V-6V motor path + separate encoder logic rail as needed8-120 mNm on gearbox output sideMediumMedium to highUseful when low-speed output control and shaft-position feedback are both required in compact packagingCounterexample: rear shaft is commonly sensing-side (pre-gear speed) and can need higher logic supply (for example 2.7V+ encoder Vcc classes).
Boosted rail + standard H-bridge1.5V in, >=3V motor rail5-80 mNmMediumMediumUseful when you must stay on commodity 2.7V+ driver ecosystemAdds conversion loss, transient complexity, and BOM/cost overhead.
Rechargeable 1.2V NiMH + power conversion path1.2V nominal cell + engineered rail5-70 mNmMediumMediumUseful for rechargeable programs when cycle cost dominates and architecture can absorb conversion overheadCounterexample: direct 1.2V rail without conversion can sit below 1.65V/1.8V/2.7V driver floors.
Low-voltage integrated H-bridge path (1.65V class)1.65V-11V2-40 mNmSlowLow to mediumWorks near single-cell designs with strict startup-droop control1.5V + droop can still fall below VM floor in cold/aged-cell conditions.
3V coin-cell direct-drive path (CR2032 class)3.0V nominalN/A for typical motor startup envelopesOften collapses under startup surgeLow cell BOM, high architecture riskSuitable for ultra-low-current sensor pulses, not for brushed motor startup.Murata CR2032R/X rows list <=1mA to <=3mA continuous and 30mA to 50mA pulse under stated conditions.

Risk and mitigation

Priorities are qualitative engineering judgments, not measured failure probabilities. Each risk has a direct mitigation action.

Risk matrix
Qualitative priorityImpact axis
RiskImpactQualitative likelihoodMitigation path
Double-shaft motor selected without confirming each shaft’s functionHighMediumCheck the function of each shaft against the part drawing and encoder datasheet before setting output speed or load.
Treating rear shaft as second low-speed power output without verifying gearbox-side speed mappingHighMediumUse rear shaft as sensing-first baseline and confirm whether it is pre-gear or post-gear before mechanical design freeze.
Powering encoder electronics directly from 1.5V rail in double-shaft buildsHighMediumCheck encoder logic supply floor early (for example 2.7V-class modules) and budget separate regulated rail if required.
Rear-shaft coupler misalignment or side-load exceeds micro bearing envelopeHighMediumCreate radial/axial load budget at both shaft ends and validate against candidate PN datasheet values before sample PO.
Assuming direct-drive motor can hold 2rpm under loadHighHighForce gearbox-path comparison and require output-speed-under-load evidence.
Treating nominal gear ratio as exact and ignoring supplier tolerance bandsHighMediumUse exact ratio rows (not nominal labels), then apply supplier no-load speed/current tolerance margins before finalizing low-rpm feasibility.
Sizing driver and battery path by nominal ratio only, without locking winding classHighMediumFor same-ratio options (for example 1000:1 LP/MP/HP), use winding-specific stall-current rows before declaring electrical fit.
VM droop below motor-driver floor (or UVLO threshold)HighHigh in 1.5V single-cell designsVerify driver VM minimum and transient droop on oscilloscope before architecture freeze.
Undersized startup current budgetHighMediumUse 2.8x as a screening baseline, then check winding-specific stall-current upper bounds (startup can approach stall current at switch-on).
Treating 1.2V rechargeable AA as a drop-in replacement for 1.5V primary railsHighMediumRun a separate rechargeable architecture check and gate on measured UVLO margin, not nominal-voltage labels.
Exceeding high-ratio gearbox load-limit guidanceMediumMediumCheck torque transients against supplier load-limit notes before sample signoff.
Sustained operation near/above vendor brushed-current guidanceMediumMediumUse stall-current utilization as a pre-RFQ screen and demand PN-level thermal/life evidence.
Thermal drift at high duty cycle without matched endurance curvesHighMediumRun duty derating and include enclosure thermal path review.
Assuming 3.7V is fixed and ignoring 4.2V full-charge stateHighMediumCheck motor/driver absolute maximum ratings and PWM derating at the full-charge rail.
Using 3V coin-cell architecture for motor startup currentsHighHighCompare startup-current estimate against coin-cell current envelope before locking the battery architecture.
RoHS compliance assumed without homogeneous-material declarationsHighMediumCollect supplier declaration and exemption mapping before production release.
Lithium-powered samples are shipped without available UN 38.3 test-summary documentsHighMediumTreat test-summary availability as a shipment gate in RFQ and supplier onboarding checklists.
Murata-era coin-cell compliance documents are reused without issuer/date validation after business transferMedium to highMediumValidate active document issuer and revision date, then reference current Maxell certification files for the exact CR-series cell before shipment or audit.
EU battery-regulation phased obligations are ignored in launch planningMedium to highMediumMap Regulation (EU) 2023/1542 staged dates plus Regulation (EU) 2025/1561 Article 48 amendments to project milestones and assign ownership early.
US coin-cell product/packaging safety milestones are skipped for consumer-facing programsMedium to highMediumCheck Reese law path explicitly (16 CFR part 1263 and 16 CFR 1700.15), including manufactured/imported and packaging milestone dates.

Scenario examples

These hypothetical cases show how to apply the boundaries; they are not customer results or measured motor performance.

Scenario table
Startup-focusedBalanced dutyHigh duty / boundary
ScenarioAssumptionIndicative decisionAction
Single-cell rail + DRV8833-class H-bridge1.5V rail with driver family requiring VM around >=2.7V and UVLO protectionNot recommended (bridge can stay disabled).Switch to boosted rail or low-voltage driver path, then re-test startup transients.
Single-cell rail + low-voltage driver path1.5V nominal rail with driver floor around 1.65V and high-pulse startupConditional fit with strict droop validation.Validate cold-start and aged-cell droop before confirming procurement shortlist.
Double-shaft gearmotor with rear shaft treated as 2rpm outputRear shaft is assumed to have the same speed/torque semantics as gearbox output without source verificationUsually not recommended (semantic mismatch risk).Confirm shaft function from part-specific datasheet (encoder-side vs output-side) before mechanical interface release.
Double-shaft + hall encoder on 1.5V-only railEncoder logic and motor are both powered directly by single-cell 1.5V pathConditional to not recommended depending encoder Vcc floor.Add separate logic supply path and re-test signal integrity and startup behavior before RFQ signoff.
NiMH 1.2V direct rail without conversionSingle-cell rechargeable AA (nominal 1.2V) tied directly to motor-driver supplyUsually not recommended for direct drive-control rails.Reframe as converted-rail architecture or move to a driver/package with validated split-supply behavior.
Split-rail driver with controlled logic supplyDriver package supports separate VM and VCC rails, and VCC remains above UVLO while VM droops under startupConditional fit with instrumentation on both rails.Capture synchronized VM/VCC waveforms and validate package-specific UVLO response before procurement signoff.
1.5V lithium cell + 1000:1 gearmotor pathTarget 2rpm, 12mNm, duty 30%, startup current controlled under driver/power limitsConditional fit with gearbox and startup waveform verification.Request gearbox backlash + startup waveforms from supplier test bench.
Nominal ratio used as exact ratio in 2rpm sizingEstimator assumes 1000:1 nominal ratio equals exact output ratio and ignores supplier no-load speed/current tolerancesConditional to not recommended for precision-speed promises.Use exact ratio rows and include tolerance guardbands before making low-rpm commitments in RFQ text.
Same 1000:1 ratio but winding class left unspecifiedLP/MP/HP winding options are treated as equivalent because the gear ratio label looks identicalConditional to not recommended until winding-specific startup current is confirmed.Lock winding class first, then size driver and battery path using that row (LP 0.36A vs HP 1.6A stall at 6V is not interchangeable).
Direct-drive coreless request at 2rpm1.5V, no gearbox, torque demand >=10mNmNot recommended (speed-torque target mismatch).Switch to high-ratio gearmotor or rethink mechanical transmission.
Boosted rail architecture1.5V battery + boost to 3.3V with DRV8833-class driverConditional fit with efficiency and transient penalties.Validate converter startup overhead and thermal budget before RFQ.
3V coin-cell powered motor startupCR2032-class rail with estimated startup demand above tens of mABoundary-state / usually not recommended.Move to higher-current battery class or add staged energy buffer and verify transient waveform.
3.7V nominal single-cell Li-ion designRail can reach 4.2V during charge-complete stateConditional fit pending voltage-margin validation.Verify motor/driver absolute maximum margin at 4.2V before sample release.
US consumer kit uses coin cells but skips Reese law checksElectrical and UN 38.3 checks pass, but product/packaging requirements in 16 CFR part 1263 are not plannedNot recommended for US launch readiness.Add CPSC product + packaging compliance checkpoints (manufactured/imported and packaging dates) before retail shipment plans.

Decision FAQ

Questions are grouped by intent, not glossary-only definitions.

B2B application fit, OEM options, and inquiry handoff

Move from estimator output to executable sourcing with factory-side customization scope and compliance-ready RFQ inputs.

Application fit
Projects that match this page's pre-RFQ scope.
  • Battery-powered actuator projects in 1.2V-3.7V rails that need a fast pre-RFQ feasibility screen.
  • OEM teams deciding whether battery voltage, driver limits, and gearbox ratio fit a compact actuator before requesting samples.
  • Programs where dual-shaft packaging requires encoder rail planning and rear-shaft load validation before supplier shortlist.
  • Programs where startup current and voltage sag must be quantified before supplier shortlist.
OEM options
Customization knobs available from factory-side engineering.
  • Winding and commutation tuning for low-voltage startup torque margins.
  • Gear ratio and backlash tuning for near-2rpm output targets under real load.
  • Shaft, lead-wire, connector, and mounting customization for your assembly envelope.
Trust and compliance
Evidence gates required before production commitment.
  • Request dated RoHS/REACH declarations before RFQ freeze, not after PO.
  • For lithium-powered samples, request the applicable UN 38.3 test summary from the battery supplier before arranging transport.
  • For US consumer products using button/coin cells, validate Reese law scope and product/packaging milestones before retail shipment.
  • For CR-series coin cells, verify document issuer/date during the Murata-to-Maxell transition window before treating legacy files as active evidence.
  • If EU delivery is planned, map Battery Regulation (EU) 2023/1542 staged dates plus Regulation (EU) 2025/1561 amendments into sourcing milestones.
  • Validate UVLO/OCP margin and startup waveform on your final battery and load.
  • Treat this page as pre-RFQ screening only; release still requires PN-level bench evidence.
